Emergency Position-Indicating Radio Beacon (EPIRB)
-

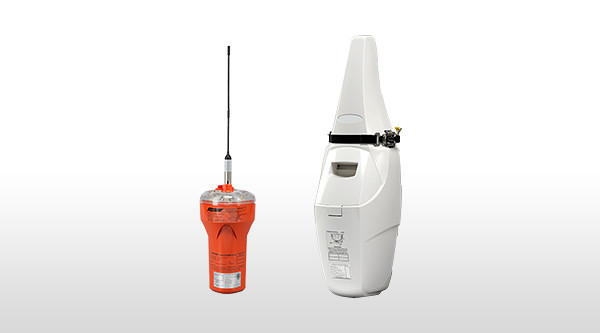

TEB-700/TEB-720
In an emergency, an EPIRB transmits the serial number of the ship in distress on a frequency designated for international SAR operations. The signal is picked up by satellites, and the Doppler track makes it possible to determine the ship’s position.
- Transmits on 406MHz and 121.5MHz.
- Compact, lightweight, easy to install
- Simple design, easy maintenance
- Anti-rust, anti-corrosion construction
- Flexible antenna to resist gales & vibration
| Transmit frequencies | 406.028MHz, 121.5MHz |
|---|---|
| Output power(406.028 MHz transmitter) PERP(121.5 MHz transmitter) |
Within 5W ± 2 dB 50 mW ± 3 dB |
| Dimensions | Main unit (HxWxD): 529 x 120 x 116mm Main unit + auto release (HxWxD): 575 x 165 x 142.5mm |
| Mass | Main unit: 1.3kg Main unit + auto release: 3.8kg |
| Transmit frequencies | 406.028MHz, 121.5MHz |
|---|---|
| Output power(406.028 MHz transmitter) PERP(121.5 MHz transmitter) |
Within 5W ± 2 dB 50 mW ± 3 dB |
| Dimensions | Main unit (HxWxD): 529 x 120 x 116mm Main unit + holder (HxWxD): 585 x 175 x 165mm |
| Mass | Main unit: 1.3kg Main unit + holder: 2kg |
Installation photo
- The TEB-700/TEB-720 installed on a ship.
