RFSoC Board

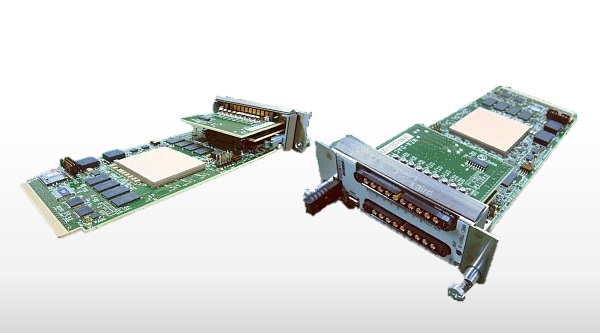

RFSoC board, MMC-TRX02-B is an AMC module in conformitywith the MTCA.0 standard.

It enables to start up Linux（Ubuntu 16.04.6 LTS）from SD card, enables to process and to analyze ADC input data, and also enables to process and to generate DAC output data, by using Python, Jupyter Notebook.

In addition, it enables to make a high speed transmission of the processed data , to make a high-speed communication between the board by P2P Link, and make a trigger transmission by M-LVDS.

A/D: Resolution 12bit, Sampling ; 4GSPS, Bandwidth ; 4GHz, No. of Channels ; 8ch
D/A: Resolution 14bit, Sampling ; 6.4GSPS, Bandwidth ; 4GHz, No. of Channels ; 8ch
PS Memory DDR4-2133 Memory, 64bit, 4GB
PL Memory DDR4-2400 Memory, 64bit, 4GB
FPGA Xilinx UltraScale+ RFSoC XCZU27DR
