A/D、D/A Conversion Board

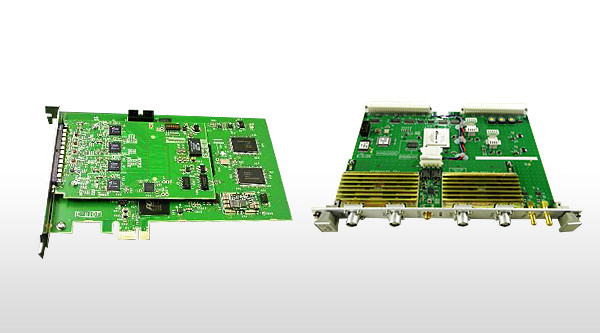

We manufacture A/D and D/A conversion boards compatible with various platforms.

In addition to A/D and D/A conversion boards, we manufacture boards that combine A/D and DA conversion.

As well as the very high-precision boards used for beam control in large accelerators, and high-performance boards used for radar equipment, for electronic warfare devices, and for radio communications equipment, we can supply subsystems such as front-end RF circuits.

Platforms VME, PCI, PCIe, CompactPCI, MTCA.0, MTCA.4, etc.
High dynamic range A/D Resolution: 16-bit
Sampling: 250[MSPS]
SFDR: ? 96[dB]
Low-distortion A/D conversion Resolution: 24-bit
Sampling: 1[MSPS]
Integral nonlinearity: less than ±10[ppm/FS]
Differential nonlinearity: less than ±2[LSB]
Low-distortion D/A conversion Resolution: 16-bit
D/A conversion speed: 238[MSPS]
Output frequency: DC-30[MHz]
Nonlinearity: less than ±2[LSB]
FPGA processing A/D signal processing using FPGA (filter, DDC, FFT, etc.)
D/A signal processing using FPGA (filter, DUC, DPD, etc.)
