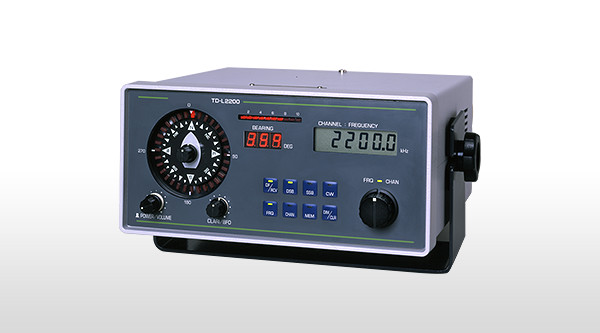

TD-L2200

  • Bearing data can be monitored with numeric LCD and ring LED display.
  • Bearing signal can be output in NMEA 0183 format in option.
  • Up to 100 spot reception frequencies can be stored.
Direction Display Digital or 11.25 ° interval ring LED
Frequency range 190kHz～3450kHz, 460kHz～1600kHz, 1600kHz～4500kHz
Wave form A1A, A2A, A3E, J3E
Measurable Minimum Field Strength Beacon: Better than 14μV/m at 410kHz
Broadcast: Better than 5μV/m at 1,000kHz
Marine, DSB/SSB mode: Better than 7μV/m at 2,000kHz,
Better than 5μV/m at 3,000kHz
Marine, CW mode: Better than 5μV/m at 2,000kHz,
Better than 3.5μV/m at 3,000kHz
Dimension Main unit：H147×W290×D285mm
Weight Main unit：4.5kg
Power supply 12 or 24VDC
Antenna Loop antenna of 65cm or 80cm diameter
