Automatic Digital Direction Finder

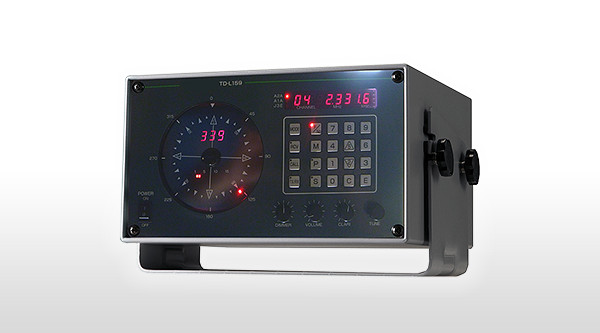

TD-L159

  • Ensures stable bearing detection with electronic digital goniometer.
  • Compact size and light weight enables wide choice of installation locations and easy maintenance.
  • Enables spot/scanning reception.
  • All at once calling function for sele-call radio buoys is available as standard.
  • Built-in TX unit for sele-call radio buoys is available in option. With the optional TX unit, TD-L159 enables to call and detect sele-call radio buoy independently.
Direction Display Ring LED display
Frequency range 200kHz~4,999.9kHz (0.1kHz digital display)
Wave form A1A, A2A, H2A, A3E, H3E, J3E
Signal/Noise　ratio MF Band: Not less than 10dB for 50μV/m input
MHF Band: Not less than 10dB for 30μV/m input
Accuracy MF Band: within ±2°at an electric field of 1mV/m
MHF Band: within ±3°at an electric field of 300μV/m
Dimension Main unit：H170×W300×D270mm
Weight Main unit：8kg
Power supply 24VDC
Antenna Loop antenna of 85cm diameter
