Direct viewing automatic direction finder
-

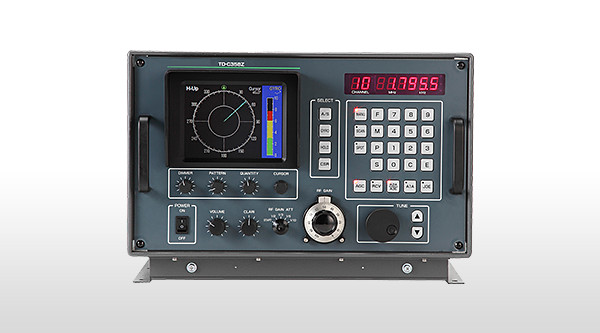

TD-C358Z
TD-C358Z can display the direct bearing source of a radio signal on its LCD display. It enables to detect SSB signals, high-speed communication signals and radio telephone signals distinctly.
- No limitation of feeder length with a new loop antenna matching system.
- Measured direction can be retained with the application of new circular histogram LCD display.
- Scanning reception and search reception enable to detect the bearing of a radio signal with easy operation.
- Receive function makes it easy to seek a frequency for direction finding.
- Effective distance measurement using 5 steps sensitivity adjustment and large-sized RF Gain volume (Vernier volume).
| Direction Display | LCD automatic display for omni-direction |
|---|---|
| Frequency range | 200kHz～29999.9kHz (0.1kHz digital display) |
| Wave form | A1A, A2A, H2A, A3E, H3E, J3E |
| Signal/Noise ratio | MF Band: Not less than 10dB for 50μV/m input MHF Band: Not less than 10dB for 30μV/m input |
| Accuracy | MF Band: within ±1°at an electric field of 1mV/m MHF Band: within ±2°at an electric field of 300μV/m |
| Dimension | Main unit：H279×W410×D352mm |
| Weight | Main unit：18kg |
| Power supply | 100/110/115/200/220/230/VAC,50/60Hz |
| Antenna | Loop antenna of 85cm diameter |
