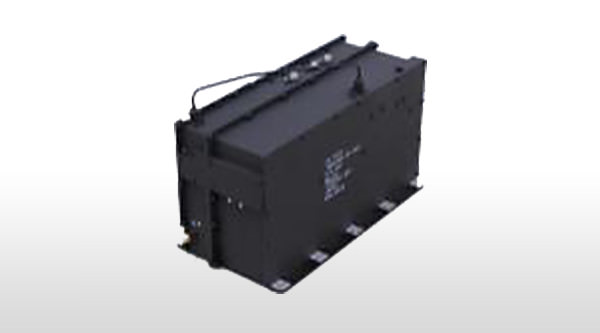

Telemetry and Beacon Transmitters

Our high-quality products have been used in more than 400 satellites worldwide.

Main features

  • Compatible with frequencies from L band to Ka band
  • Stable signal source with oven-controlled oscillator
  • High-purity signal using PLL circuit
  • 10W class power output (Ku band and below)
  • 2 telemetry channels and 3 ranging channels
  • Available of 2 adjacent frequencies by command can be equipped with 2 output ports
Coverage Frequencies from L band to Ka band, single or dual frequencies
Output power Up to 10W. Single or dual outputs
Phase noise -91dBc/Hz at 1kHz (Ku band)
Power consumption < 37W high-output mode
Mass <2.3kg （Available of 2 adjacent frequencies model）
