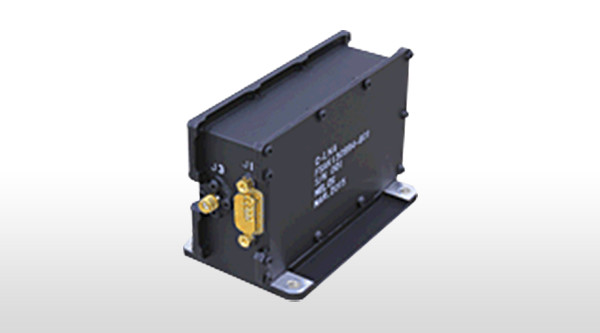

Low Noise Amplifiers (LNA)

Our Products have been installed in worldwide satellites,we have shipped more than 180 units since 1993.

Main features

  • Excellent low-noise characteristics
  • Compatible with frequencies from L band to Ka band
  • Compact design, even including RF section and power supply
  • Flexible amplification factor adjustment function
  • Wide operating band at each frequency
Coverage Frequencies from L band to Ka band
Amplification factor 100dB (can be customized to match customer specifications)
Noise characteristics 1.0～2.1dB (depending on frequency response of HEMT transistors used)
Power consumption 0.5～3W (depending on number of transistors used and power supply size)
Mass < 0.9kg (including RF section and power supply circuit)
